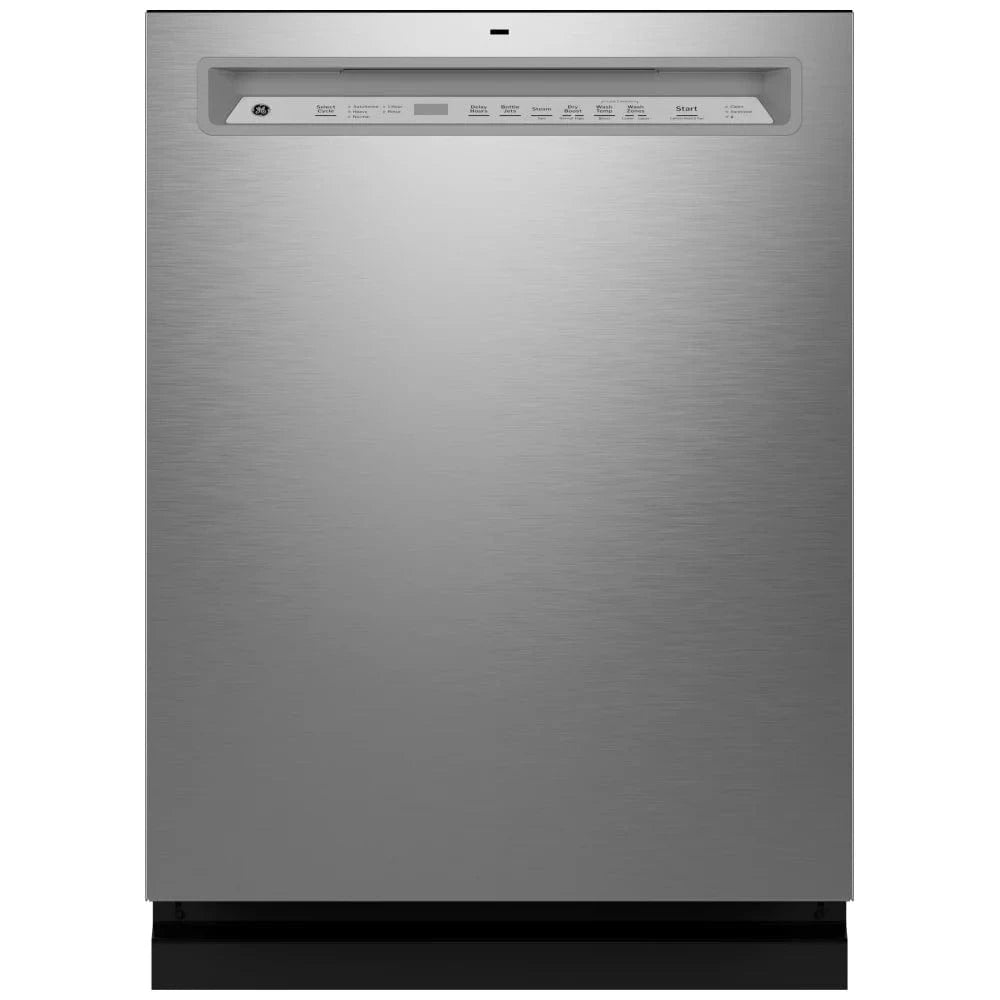

GE GDF650SYVFS Dishwasher, 24 inch Exterior Width, 47 dB Decibel Level, Fully Integrated, Stainless Steel (Interior), 5 Wash Cycles, 16 Capacity (Place Settings), Stainless Steel color

APPEARANCE
Handle    Recessed
Installation    Built-Up Floor Capable
Flush Cabinet Installation
Side Installation or Top Installation Included
Handle Color    Fingerprint Resistant Stainless
Door Style    Long Door with Front Controls
Door Appearance    Full-length door
Color Appearance    Fingerprint Resistant Stainless
Control Panel Color    Color Matched
POWER / RATINGS
Power Connection    Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year)    240
Electrical Requirements    120V ; 60Hz ; 6.6A
Calrod Heater Watts    800/500
Volts/Hertz/Amps    120V; 60Hz; 6.6A
WARRANTY
Labor Warranty    Limited 1-year entire appliance
Warranty Notes    See written warranty for full details
Parts Warranty    Limited 1-year entire appliance
ECONOMICAL / QUIET
Door Insulation    Insulation
Mastic
Quiet Package    47 dBA
Outer Wrap    Bitumen
Motor Type    Variable Speed
Quiet Features    Quiet Water Valve
Sealed Toe Kick
Tub Collar Trim
ACCESSORIES
Optional 12' Drain Hose    Optional hose kit (WD24X10065)
WEIGHTS & DIMENSIONS
Height w/ Legs Retracted - Minimum Height    33.375 in
Cutout Height (in)    33 1/2 in
Cutout Width (in)    24 in
Overall Depth    24 in
Cabinet Width    24 in
Net Weight    99 lb
Overall Width    23.75 in
Approximate Shipping Weight    112 lb
Overall Height    34 in
Cutout Depth (in)    24 in
Height w/Legs Extended - Maximum Height    34.625 in
Depth with Door Open    27.5 in
FEATURES
Wash System    3-Level
600 Series
Sensor    Clean Sensor
Lower Rack    Ball-Tip Tines
Tub Type    Tall Tub
Leveling System    4 Leveling Legs
OU Certified    No
Additional Protection    Active Flood Protect
Number of Place Settings    16
Dishwasher Options    Bottle Jets
Child Lock
Delay Start 1-12 Hr.
Dry Boost™ (High)
Dry Boost™ (Normal)
Sabbath Mode
Start/Cancel
Steam + Sani (Certified to NSF Standard 184)
Wash TempBoost
Wash Zone Lower Only
Wash Zone Upper Only
Latch    Center Pull
Number of Options    11
Style    Built-In Front Control
Water Filtration System    100% Filtration with Piranha Hard Food Disposer and Removable Filter
Cutlery Tray    One piece removable 3rd rack
Rack Features    1 Piece Silverware Basket with 3 Cell Covers
Adjustable Upper Rack
Ball-Tipped Tines
Racking Material    Nylon
Dishwasher Cycles    1 Hour Wash
AutoSense
Heavy Wash
Normal Wash
Rinse
Rack Color    Silver
Dispenser    Rinse Aid with Indicator and Adjustment
WiFi Connect    Optional (Requires part no. PBX23W00Y1)

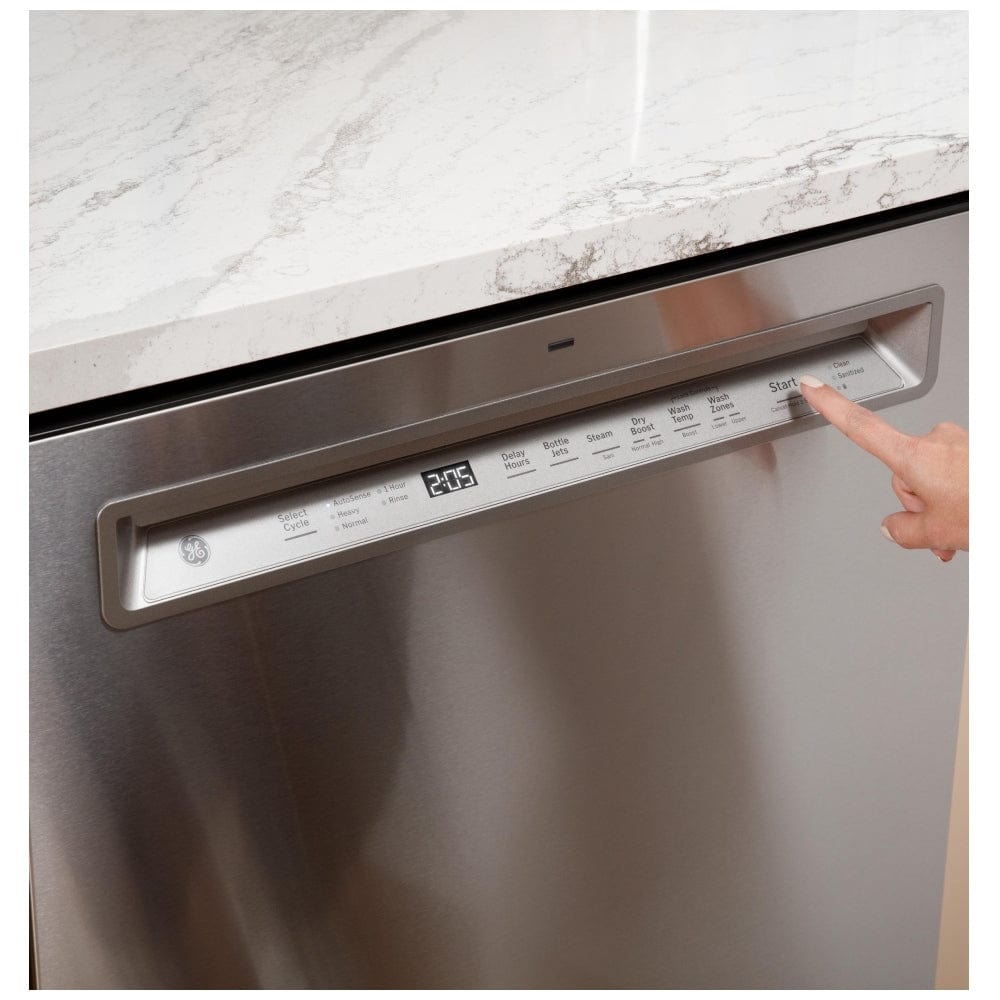

Control Type    8 Touchpads
Cap Touch Controls
Front Controls

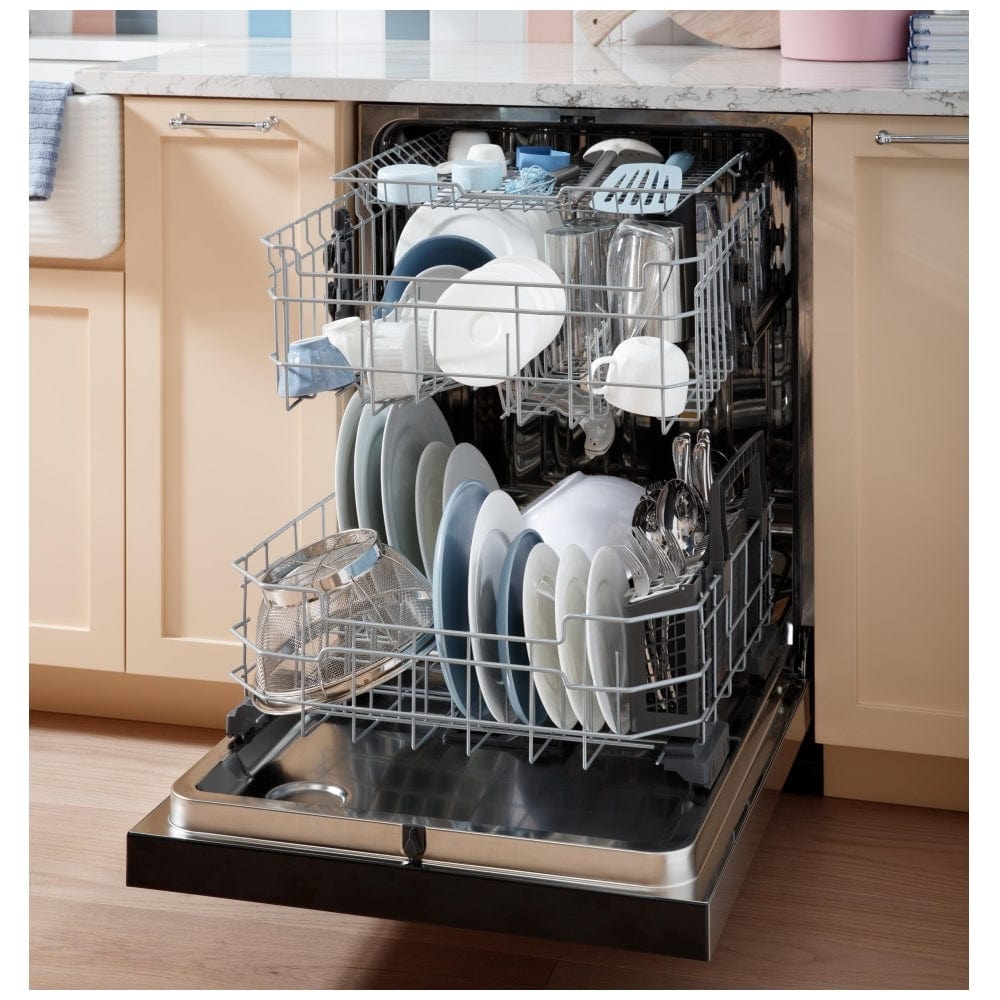

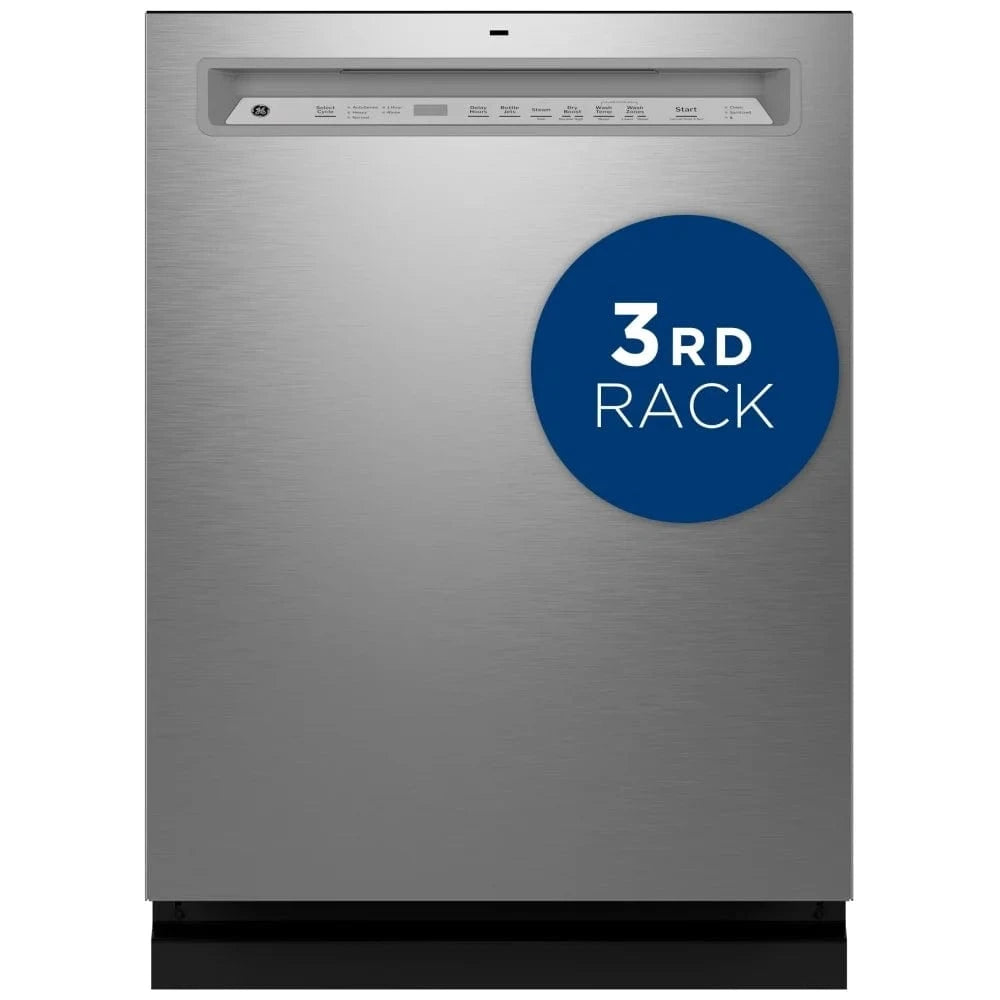

Racking System    Full 3rd rack
Dishwasher Drying Features    Dry Boost™
Normal, High, Off
Wash Arms    3 Wash Levels
Bottle Jets
Lower
Middle
Upper
Wash System Features    Automatic HotStart
Automatic Temperature Control
Bottle Jets (4)
Drain Pump
Piranha™ Hard Food Disposer with removable filter
Variable Speed Dual Pumps and Motors
Top Rack/3rd Rack    Yes
Exterior Style    Traditional
Product Type    Built-In
Upper Rack    Ball-Tip Tines
Height Adjustable
Removable
Dishwasher Control Features    1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door
Audible End-of-Cycle Signal
Control Lock with 1 Light
Last Cycle Memory
Number of Cycles    5
Tub and Door Liner    Stainless Steel
Sabbath Mode    Yes
Showroom Power Mode    Yes
Specifications
Features
Style:                                                            Built-In Front Control
Number of Place Settings:                                     Up to 16
Tub Type:                                                             Tall Tub
Latch:                                                                Center Pull
Control Type:                                            8 Touchpads, Cap Touch Controls, Front Controls
Tub and Door Liner:                                               Stainless Steel
Showroom Power Mode:                                           Yes
Wash System:                                                  3-Level, 600 Series
Water Filtration System:               100% Filtration with Piranha Hard Food Disposer and Removable Filter
Sensor:                                                              Clean Sensor
Additional Protection:                                        Active Flood Protect
Audible End-of-Cycle Signal:                                      Yes
Control Lock with 1 Light:                                           Yes
Last Cycle Memory:                                                    Yes
Dispenser:                                                   Rinse Aid with Indicator and Adjustment
Dishwasher Drying Features:                           Dry Boost™, Normal, High, Off
Wash Arms:                                               3 Wash Levels, Bottle Jets, Lower, Middle, Upper
WiFi Connect:                                              Optional (Requires part no. PBX23W00Y0)
Installation:                                      Built-Up Floor Capable, Flush Cabinet Installation, Side Installation                                                         or Top Installation Included
Leveling System:                                            4 Leveling Legs

Cycles
Number of Cycles:                                                   5
Dishwasher Cycles:                  1 Hour Wash, AutoSense, Heavy Wash, Normal Wash, Rinse

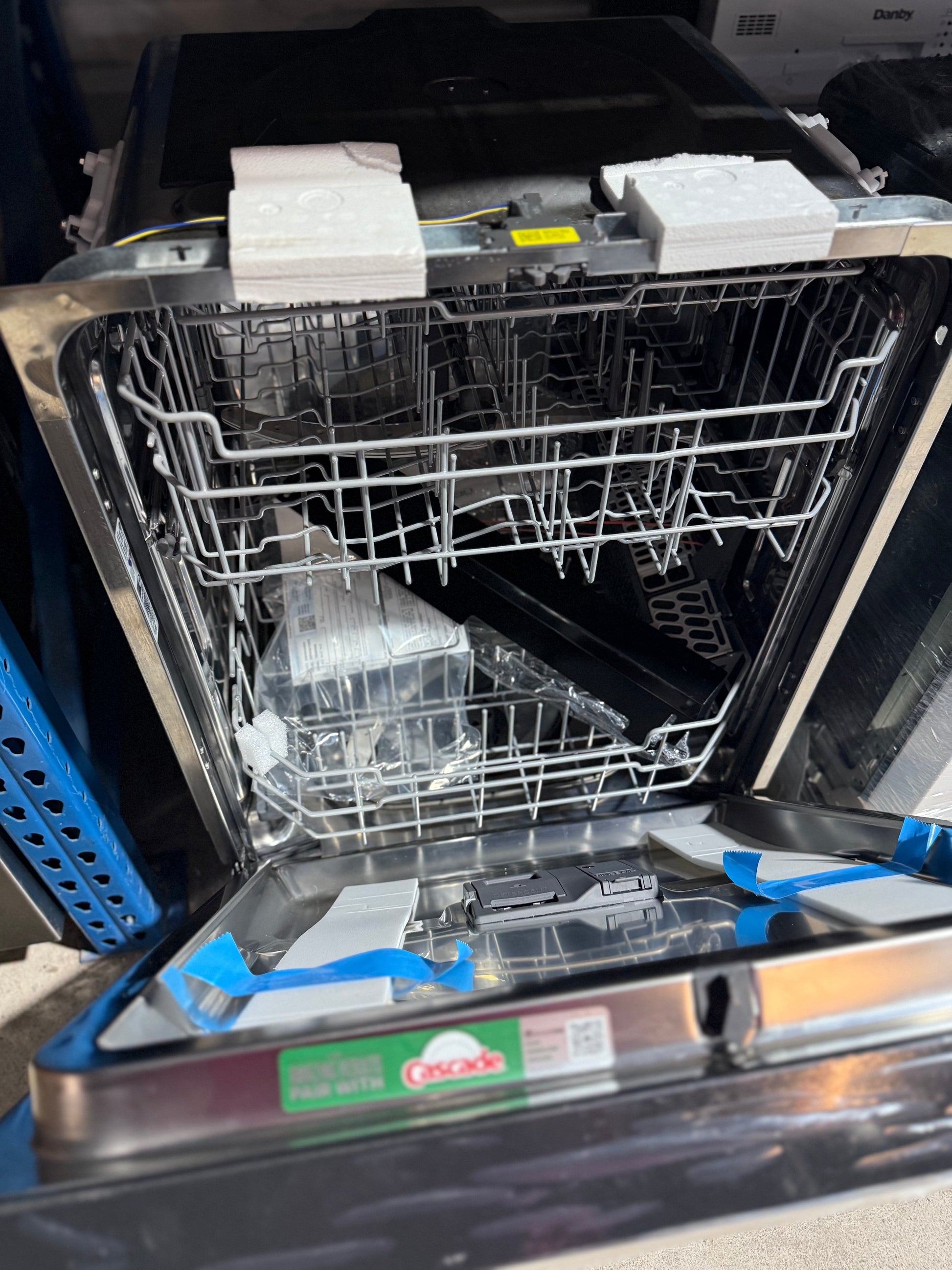

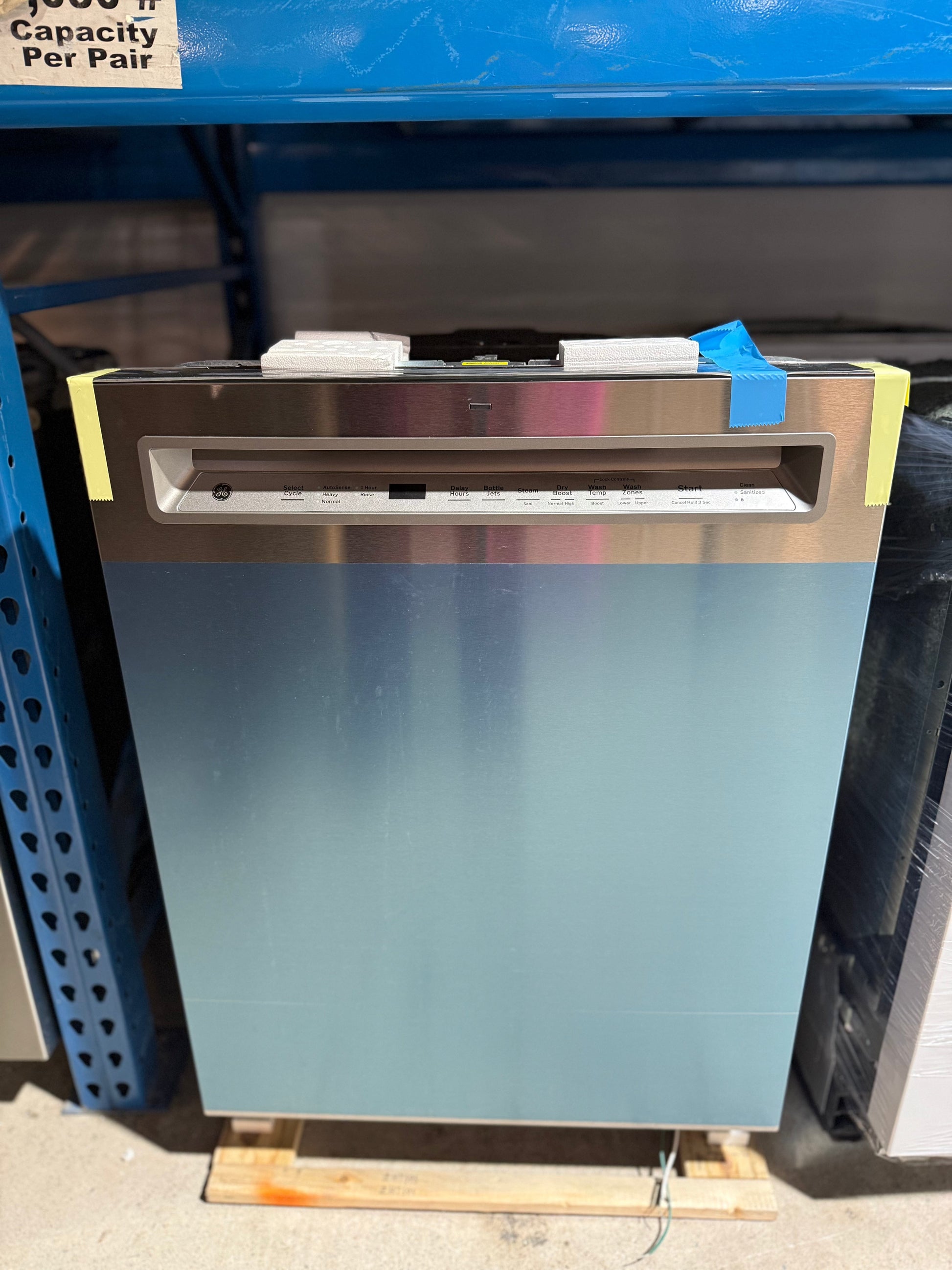

OPEN BOX SCRACH & DENT
