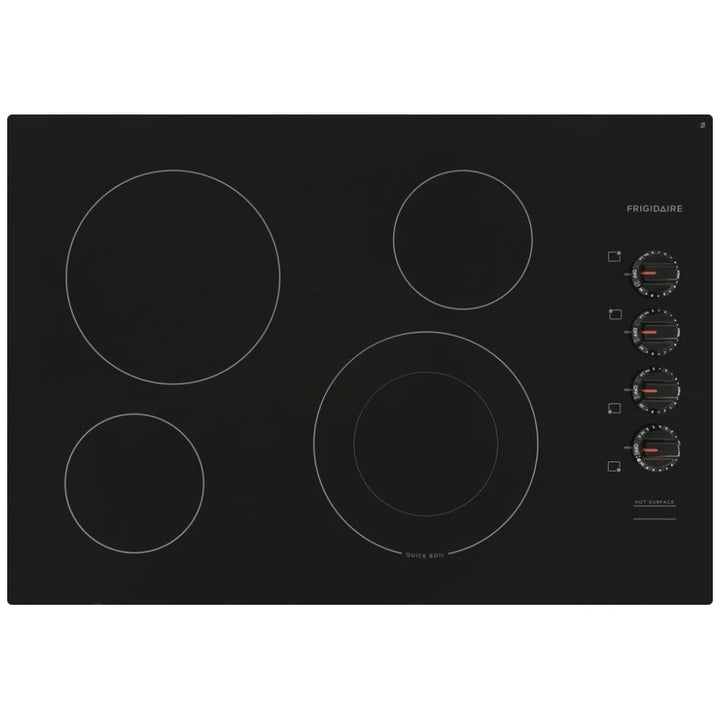

Frigidaire FFEC3025UB Cooktop, 30 inch Exterior Width, Electric, 4 Burners, Black colour
Frigidaire FFEC3025UB Cooktop, 30 inch Exterior Width, Electric, 4 Burners, Black colour
Product Line Electric Cooktop
Power Type Electric 240v
Size 30"
Installation Type Drop-In
Factory Rayong
Color Black
Cooktop
Cooking Surface Type Smooth
Hot-Surface Indicator Light Yes
Cooktop Performance
Right Front Element Burner Size (Small) 6"
Right Front Element Burner Size (Large) 9"
Right Rear Element Burner Size 6"
Left Front Element Burner Size 6"
Left Rear Element Burner Size 9"
Right Front Element Burner (Small) 1600 Watts
Right Front Element Burner (Large) 3000 Watts
Right Rear Element Burner 1200 Watts
Left Front Element Burner 1200 Watts
Left Rear Element Burner 2500 Watts
Controls
Sabbath Mode No
Display
Control Location Right
Display Type Mechanical
Dimensions and Volume
Height 2 5/8"
Width 30 5/8"
Depth 21 3/8"
Electrical Specifications
Amps @ 240 Volts 32.9 Amps
Connected Load @ 240V 7.9 kW
Minimum Circuit Required 40 Amps
Voltage Rating 240 V
General Specifications
Frigidaire Fit Promise Yes
Product Weight 29.45 lbs
AB-1200 Information available at frigidaire.com/en/ab1200
Prop 65 Label Yes
Warranty - Labor 1 Year
Warranty - Parts 1 Year
Installation
Installed Over a Wall Oven Yes
Power Supply Connection Location Right Center
Certifications and Approvals
ADA Compliant No
CSA Listed Yes
UL Listed Yes
ETL Listed No
